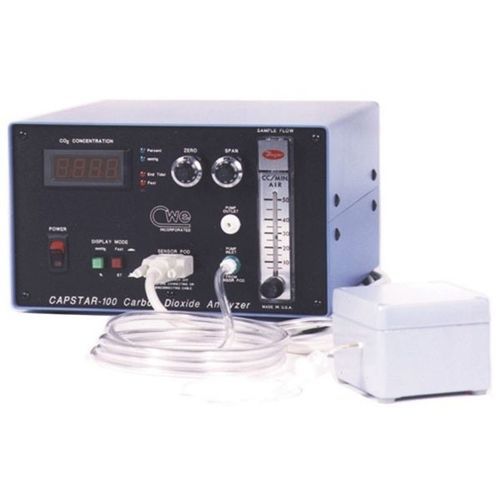

Control analyzer CAPSTAR-100

flowcalibrationcarbon dioxide

The perfect and reliable instrument for fast response end-tidal Carbon Dioxide monitoring for rats and larger animals, thanks to its rapid response time, small sample flow requirements and long-term stability. Presentation Fast response end-tidal Carbon Dioxide monitor for small animals, the CAPSTAR-100 Carbon Dioxide Analyzer provides continuous measurement of expired CO2 over the range 0-10 percent. Its very fast response time, small sample flow requirements, and long-term stability make it ideal for expiratory gas measurement. Operating principle The heart of the instrument is The SENSORPOD, a miniature CO2 infrared analyzer with an exceptional stability, low maintenance, and a linear output. The heated measurement cell prevents water condensation. The SENSORPOD, which contains the infrared measurement cell, is attaches to the front panel by a 1.5m cable. This measuring cell can be removed for cleaning, inspection, or replacement in minutes. The digital display shows CO2 concentration in percent or mmHg, and allows breath-by-breath peak end-tidal reading or continuous rapid response. Calibration is performed with a single calibrated gas at 5% and room air. An ideal animal capnometer for a wide range of applications: The reliability and ease of operation of the CAPSTAR-100 make it the perfect instrument for routine respiratory CO2 monitoring. It is the natural companion to our SAR-830 series Small Animal Ventilators for monitoring respiratory status. With the AVS-1 Advanced Ventilator System, it can control end-tidal CO2. It can also be used to monitor unassisted animals.
