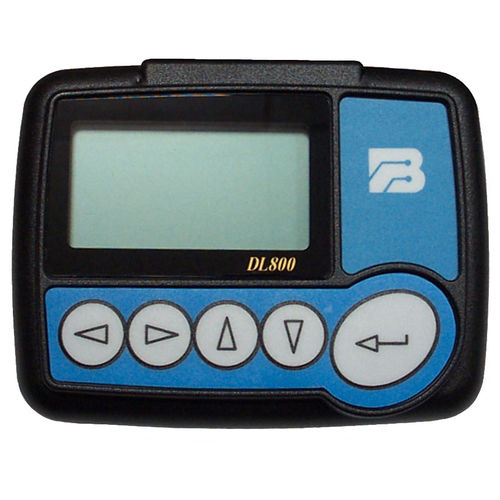

3-channel Holter monitor DL 800

The DL 800 Holter Monitor is a battery operated solid state recorder designed for 24, 48, or 72 hour continuous recording of ambulatory ECG data and the ability to detect and record pacemaker pulses in accordance with appropriate AAMI pacer detection criteria. Key Benefits Built-in electronic diary for symptom correlation Removable flash card for rapid data transfer and monitor turnaround Easy online enrollment and data upload with 24–48 hour report Technical Specifications Functional Resolution: 8 or 10 bits depending on config Recording: Full disclosure Download Interface: Flash card reader Sample Rate: 128/sec-256/sec depending on config Frequency Response: 0.05Hz to 60Hz, @ -3dB Signal Verification: LCD display Pacemaker Detection: Programmable on/off (default off) Physical Dimensions: 3.75” x 3.00” x 0.90” Weight with Batteries: 4 oz. (114 grams) Enclosure: Molded plastic (UL 94V-0) Operating Position: Any orientation Memory Recording Time: 24, 48, 72 hours Type: Flash Capacity: 64MB Minimum Battery Type (qty1): AA Alkaline IEC-LR6, AA Lithium L91 Maximum Life: 48 hours, 72 hours Environmental Operating Temperature: 0°C to +45°C Non-Operating Temperature: -20°C to +65°C Operating Humidity: 10% to 95% (non-condensing) Non-Operating Humidity: 5% to 95%
