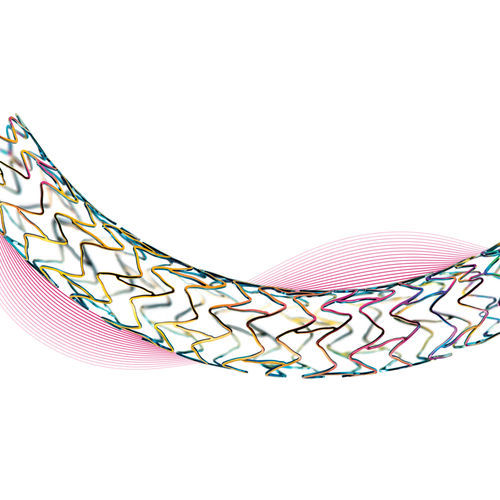

Coronary stent Orsiro®

cobalt-chromiumhydrophilic

Orsiro DES is indicated for discrete de novo stenotic lesions and in-stent restenotic lesions. Product Highlights Outstanding patient outcomes Highly deliverable Ultrathin 60ᵇ μm struts Technical Data - Stent material - Cobalt chromium, L-605 Strut thickness - ø 2.25 – 3.0 mm: 60 µm (0.0024”); ø 3.50 – 4.0 mm: 80 µm (0.0031”) Passive coating - proBIO® (Amorphous Silicon Carbide) Active coating - BIOlute® bioabsorbable Poly-L-Lactide (PLLA) eluting a limus drug Delivery system - Catheter type - Rapid exchange Recommended guide catheter - 5F (min. I.D. 0.056”) Lesion entry profile - 0.017” Guide wire diameter - 0.014” Usable catheter length - 140 cm Balloon material - Semi crystalline polymer material Coating (Distal shaft) - Hydrophilic coating Marker bands - Two swaged platinum-iridium markers Distal shaft diameter - 2.7F: ø 2.25 – 3.0 mm; 2.9F: ø 3.5 – 4.0 mm Proximal shaft diameter - 2.0F Nominal pressure (NP) - 8 atm Rated burst pressure (RBP) - 16 atm
