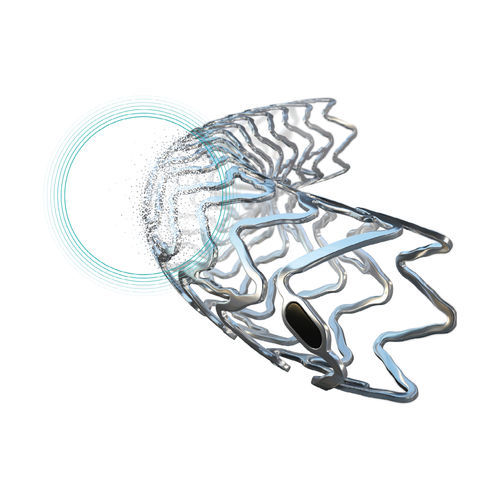

Coronary stent Freesolveᵀᴹ

magnesium

Resorbable coronary scaffolds widen coronary artery stenoses and provide temporary vessel support. Thereby, scaffolds enable unobstructed blood flow in the coronary arteries with low rates of stent thrombosis (ST) and target lesion revascularization (TLR). Resorb By degrading after fulfilling their scaffolding function, they offer all options of future therapies. Product Highlights Delivers like a DES Optimal vessel support Magnesium fully resorbed after 12 months Excellent safety and efficacy Technical Data Scaffold Scaffold material - Proprietary BIOmag® Magnesium alloy Strut thickness - ø 2.5 mm: 99 μm; ø 3.0/3.5 mm: 117 μm; ø 4.0 mm: 147 μm Maximum expandable diameter - Nominal diameter + 0.6 mm Markers - One oval Tantalum marker at each end Drug coating - BIOlute® resorbable Poly-L-Lactide (PLLA) eluting a limus drug Delivery system Catheter type - Rapid exchange Catheter length - 140 cm Recommended guide catheter - 6F Crossing profile - ø 2.5 mm ≤ 1.3 mm; ø 3.0-4.0 mm ≤ 1.4 mm Guide wire diameter - 0.014” Nominal pressure (NP) - 10 atm Rate burst pressure (RBP) - 16 atm
