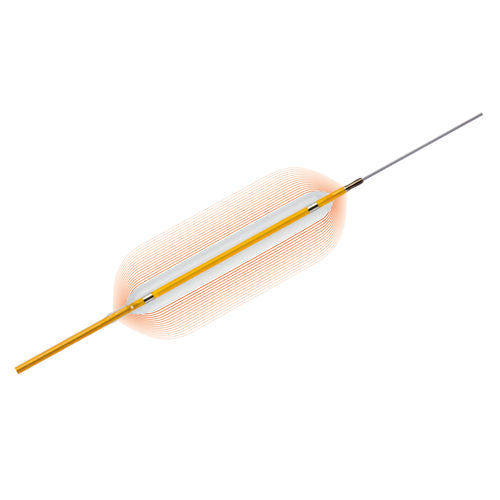

PTCA catheter Pantera®LEO

coronaryballoon5 FR

Indicated for stent post-dilatation and dilatation of a coronary artery or bypass graft stenosis. Product Highlights Lowest compliance in classb avoiding dog-bone effect More controlled growth from NP to RBP than leading competitorsc Precise dilatation Extra short balloon shoulders reduce longitudinal balloon growth Enhanced crossabilityPatchwork coating for enhanced crossability Technical Data Proximal shaft - Design - Hypotube design Shaft markers - 92 cm and 102 cm from tip Coating - Hydrophobic Distal shaft Guide wire diameter - 0.014” Lesion entry profile - 0.018” Distal shaft length - 34 cm Balloon material - SCP (Semi Crystalline Polymer) Balloon folding - 3-fold Balloon markers - Platinum-Iridium Coating - Hydrophilic (end of balloon to guide wire exit port) Distal shaft - Guide wire diameter - 0.014” Lesion entry profile - 0.018” Distal shaft length - 34 cm Balloon material - SCP (Semi Crystalline Polymer) Balloon folding - 3-fold Balloon markers - Platinum-Iridium Coating - Hydrophilic (end of balloon to guide wire exit port); hydrophobic (balloon and tip)
