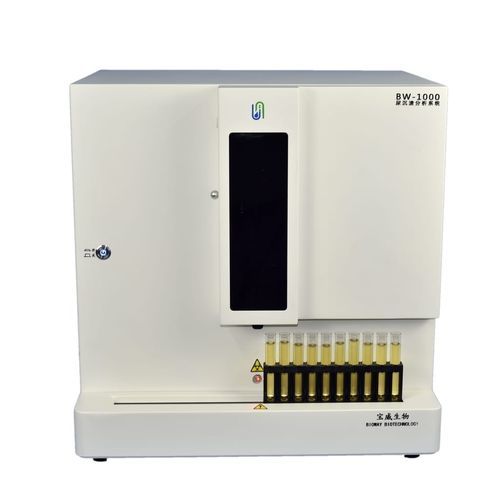

Automatic urine sediment analyzer BW-1000

for clinical diagnosticbenchtopmicroscope

Test Principle: Using machine vision technology: automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods. Test Items: Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC ,wbcc, Pus cell ,Hyaline Cast ,Granular Cast, WBC Cast ,Squamous Epithelial cell ,Normal Epithelial Cell ,Sperm ,Calcium Crystal ,Oxalate Crystal Bacteria ,Yeast ,Amorphous Urates ,Mucus etc. Test Speed: 30 samples/hour. Sample Volume: Minimum urine volume 2ml, minimum injection volume 0.5ml Sample Process: The sample can be directly tested without centrifugation. Flow Cell: High accuracy,single channel flow cell(test channel) Sampling Method: Automatic trail injection, 10 samples on the machine at the same time. Accuracy: ≥ 95% Repeatability Test: CV < 10% Contamination Rate: < 0.05% Report Form: xx unit/ul, HPF&LPF etc. international universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis Measurement: 520mm x 440mm x550mm (Lx W x H). Net Weight: 35kg Data Interface: Two-way communication interface, can be connected with dry chemistry analyzer, printer and hospital management system Power Supply: AC 110/230V, 50/60Hz Standard Configuration: Computer,including screen,mouse,keyboard 【Specification】 ● Automatic trail suction, 10 samples on machine at the same time, easily operate. ● Auto focus. Adjust focal length of microscope automatically to make sure a clear and complete sample picture. ● Sample can be used directly without centrifugation and pre-handled,
