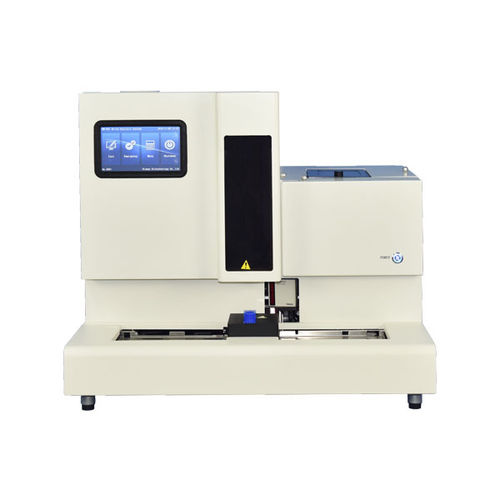

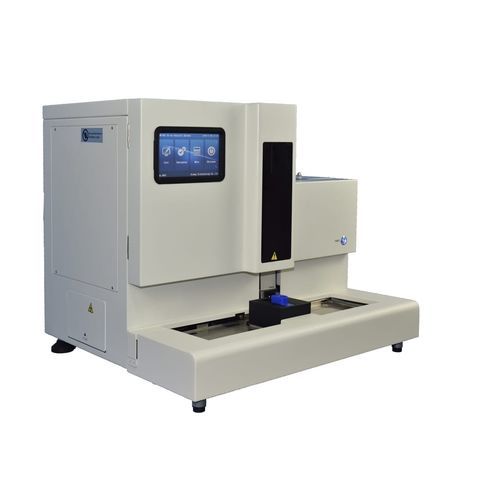

Automatic urine analyzer BW-901

for clinical diagnosticbenchtopcolorimetric

Urobilinogen (UBG), Bilirubin (BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocyte (LEU), Glucose (GLU), Specific gravity (SG), pH (pH), Ascorbic Acid( VC), Microalbumin (MAL) Light wavelength: 525nm, 610nm, 660nm Test principle: Photoelectric colorimetric method for strips, Refractometric method for color, turbidity, and specific gravity Test speed: 240 samples/hour (15 seconds/sample) On Board Sample Capacity: 6 racks of 10 tubes( 60 samples) Sample Volume: 1 ml min. Data Storage Capacity: 20,000 samples External output: RS-232 Power supply: AC220V, 50Hz Power: 300VA Environment Temperature: 15°C ~35°C, optimal temperature 20°C~25°C, relative humidity ≤75%, Dimensions: 660mm×625mm×581mm (L×W×H) Weight: 65Kg 1. Full automation: The instrument can complete the whole process of sample aspiration, dispensing, analysis and reporting automatically without user intervention. 2. The high-precision sampling system ensures the sample dispensing accuracy and reduces the urine contamination of the strip tray. 3. Integrated refractometer provides highly accurate specific gravity, turbidity and color results. 3. Each instrument module adopts 32-bit ARM processor, and Can bus connection is applied to achieve fast and accurate result 4. Unique IC card system: Reduces the test strip batch difference, provides more accurate results 5. System upgrade function: Convenient firmware upgrade with SD card, users can experience the latest software support synchronously. 6. It can be controlled together with the urine sediment analyzer and provides a comprehensive solution for urine analysis by combining urine dry chemistry test results,
