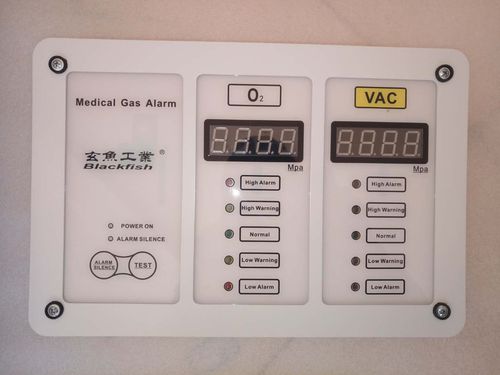

Area medical alert system BFZGAE

for gasmedical

*Separate visual indicators for each condition being monitored; *Visual indicators that remain in alarm until the situation that has caused the alarm is resolved; *When the pressure of gases arre higher or lower,it will be alarm; *With testing and mute key,have a testing before installation; *two kinds for choosing:with the gauge and without it. 1),pressure collection:collect the pressure from the pipeline then exchange into 4-20mA current to delivery the signal by sensors; 2),wires collection:to collect wires(2 cores cable) into the wires hub,then delivery the signals by the 8 cores cable; 3),pressure display zone:display the signals and monitor the pipeline current pressure; 4),communication:upload the signals and pressure of every pipeline to PC or other system. 5),Dimension of medical gas alarm: 1gas:240*230*65 2gases:340*230*65 3gases:440*230*65 4gases:540*230*65 5gases:640*230*65 6gases:740*230*65 7gases:840*230*65
