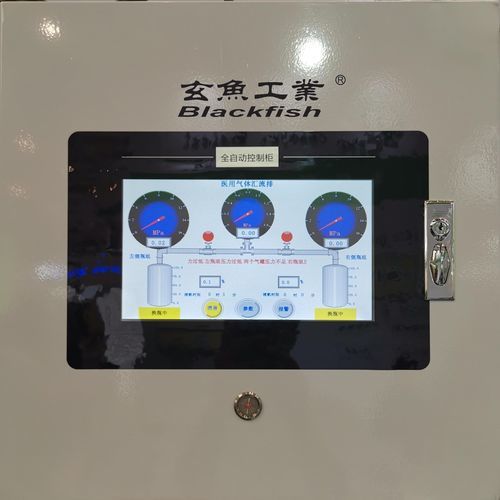

Medical gas manifold BF-MGM

automaticchange-over

1,Rated Inlet Pressure: 15 Mpa; 2,Rated Outlet pressure: 0-1.6 Mpa; 3,Max output : 200m3/h; 4,Automatic Change-over Pressure:≤0.5Mpa; 5,Empty bottle alarm pressure: ≤0.4 Mpa; 1,closed box without interference; 2,brass diaphragm of reducer,better to control flow; 3,with alarm system and remote alarming; 4,open design to meet requirements of expansion in future; 5,100% testing before release; 6,input: 15Mpa, output: 150m3/h,0.4-0.8Mpa; 7,input/output signal: 4--20mA,485bus communication; 8,controlled by high pressure sensors and displayed precisely; 9,it can work when no power; 10,working long time the electromagnetic valves don’t heat.
