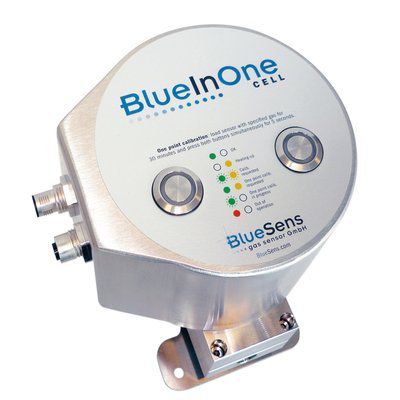

CO2 analyzer BlueInOne Cell

temperatureflowcalibration

Concentration ranges: CO2: 0 - 10 Vol.%, O2: 0 - 100 Vol.% or CO2: 0 - 25 Vol.%, O2: 0 - 100 Vol.% (others available on request) Measuring principle infrared IR (CO2), galvanic cell (O2) Temperature inside sensor unit: 3°C / 5.4°F higher than process temperature Various opportunities for mechanical connection (e.g. 4, 6, 8, 10, 12mm outer diameter, 4, 6, 8mm inner diameter, ¼”, 1/8” , 1 ¼”, ¼” and ½” swagelok, TriClamp) Electronic output: active output, maximum 500 Ohm at 24V power supply, RS232, RS485 Modbus, 2x 4-20mA, USB, Modbus OPC server (with BlueVIS) Optional display available BlueInOne Cell has been designed to measure concentrations of carbon dioxide and oxygen in biotechnological cell culture processes. It can be integrated in the exhaust gas flow of the bioprocess and measures the gas concentrations online and in real-time. Sitting behind the sterile barrier the analyzer can be calibrated at any time with no risk of contaminating the culture. Fluctuations of pressure and humidity are automatically compensated. BlueInOne fits on every fermenter from benchtop to industrial scale. BlueInOne Cell - understanding bioprocesses parallel measurement of O2 and CO2 ➔ no need for sampling different CO2 and O2 calibration ranges available will operate from 0 to 100% oxygen compact stainless steel housing ➔ robust and easy to clean PAT and QbD conforming in-situ-measurement ➔ for highest standard of quality auto compensated for humidity and pressure ➔ no need for extra gas coolers, pumps or valves real-time process optimization ➔ see what happens when it happens – fast response options Application areas
