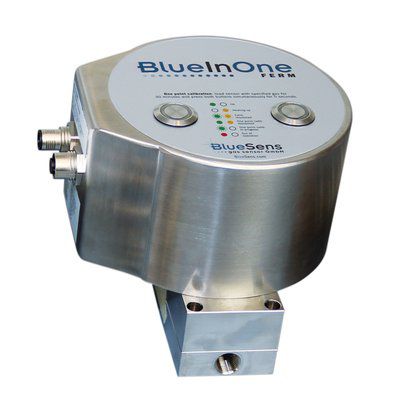

Concentration ranges: CO2: 0 - 10 Vol.%, O2: 0.1 - 25 Vol.% , CO2: 0 - 25 Vol.%, O2: 0.1 - 25 Vol.%, CO2: 0 - 10 Vol.%, O2: 1 - 50 Vol.%, CO2: 0 - 25 Vol.%, O2: 1 - 50 Vol.% Measuring principle: infrared (IR) CO2 sensor, ZrO2 (O2 sensor) Temperature inside of the sensor unit: 580°C/1076°F (O2 sensor unit) Various opportunities for mechanical connection (eg 4, 6, 8, 10, 12mm outer diameter, 4,6,8mm inner diameter, ¼”, 1/8” , 1 ¼”, ¼” and ½” swagelok, TriClamp) Electronic output: Active output, maximum 500 Ohm at 24V power supply, RS232, RS485 Modbus, 2x 4-20mA, USB, Modbus OPC server (with BlueVIS) Optional display available Using BlueInOne Ferm oxygen and carbon dioxide concentrations in your bioprocess can be monitored online and in real-time. Sitting in the exhaust gas flow behind the sterile barrier, the device can be calibrated at any time without causing potential contamination issues. Sampling systems, valves or pumps are unnecessary. Fluctuations of pressure and humidity are automatically compensated. Thus readings are both extremely accurate and precise. BlueInOne fits on every fermenter from benchtop to industrial scale. BlueInOne Ferm – robust and precise gas analysis to help you understand your process Parallel measurement of O2 and CO2 ➔ no need for sampling different CO2 and O2 ranges available Compact stainless steel housing ➔ robust and easy to clean PAT and QbD conform in-situ-measurement ➔ for highest standard of quality Auto compensated humidity and pressure ➔ no need for extra gas coolers, pumps or valves
