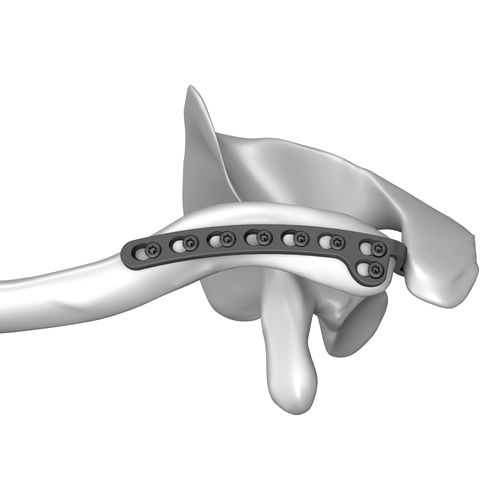

Clavicle compression plate 301006 series
distallockingtitanium

Clavicle compression plate - 301006 series - Boneunion Medical - distal / locking / titanium
Clavicle compression plate - 301006 series - Boneunion Medical - distal / locking / titanium
Clavicle compression plate - 301006 series - Boneunion Medical - distal / locking / titanium - image - 2
Clavicle compression plate - 301006 series - Boneunion Medical - distal / locking / titanium - image - 3
Clavicle compression plate - 301006 series - Boneunion Medical - distal / locking / titanium - image - 4
Add to favorites
Compare this product


Characteristics

Applications
clavicle
Part of bone
distal
Locking
locking
Materials
titanium
Length

56 mm, 107 mm
(2.2 in, 4.2 in)

Thickness

2.8 mm
(0.1 in)

Number of holes

3 unit, 8 unit

Description

Clavicular Hook Locking Plate 18mm Thickness: 2.8mm Width: 10mm Hole Spacing: 10.2mm Material: Ti-6Al-4V Screws: 3.5mm Locking Screw/Cortex Screw Instrument: Large Locking Plate Instrument Set Series: Small Locking Plate Part: Distal Bone: Clavicle Description Clavicular Hook Locking Plate, height 18mm, left, 3 Holes, 56mm Length Clavicular Hook Locking Plate, height 18mm, left, 4 Holes, 66mm Length Clavicular Hook Locking Plate, height 18mm, left, 5 Holes, 76mm Length Clavicular Hook Locking Plate, height 18mm, left, 6 Holes, 86mm Length Clavicular Hook Locking Plate, height 18mm, left, 7 Holes, 96mm Length Clavicular Hook Locking Plate, height 18mm, left, 8 Holes, 107mm Length Clavicular Hook Locking Plate, height 18mm, right, 3 Holes, 56mm Length Clavicular Hook Locking Plate, height 18mm, right, 4 Holes, 66mm Length Clavicular Hook Locking Plate, height 18mm, right, 5 Holes, 76mm Length Clavicular Hook Locking Plate, height 18mm, right, 6 Holes, 86mm Length Clavicular Hook Locking Plate, height 18mm, right, 7 Holes, 96mm Length Clavicular Hook Locking Plate, height 18mm, right, 8 Holes, 107mm Length Additional information Direction Left, Right
