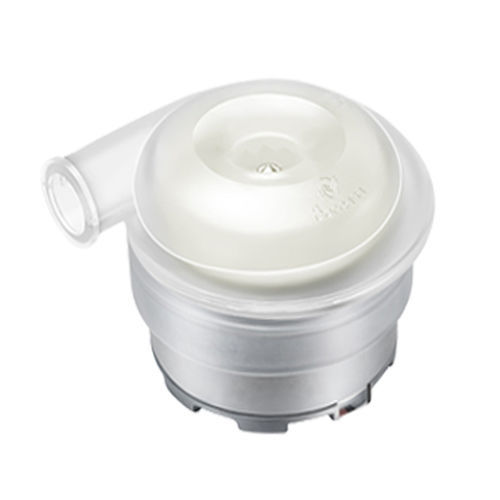

Intensive care ventilator centrifugal blower C65S1

emergencyhomeclinical

A medium-performance blower, designed for home care market. • - Dimensions: 62 (63) x 65 x 48 mm • - Offered in 3 performance levels (L2, L3, L4) • - At nominal voltage (24 V), the maximum pressure at zero flow is around 4’200 Pa (L2) ～ 6’950 Pa (L4), and the maximum flow at free flow is around 400 lpm (L2) ～ 500 lpm (L4). • - Blowers can be run at higher voltages for short periods to reach a higher performance, such as 9’000 Pa at zero flow (L4), or 560 lpm at free flow (L4). • - Designed for tubeless inlet • - Available in 12 VDC on demand. • - This blower is also available in sensor-less version (without Hall sensors). • - This blower uses a brushless motor and needs a driver to operate.
