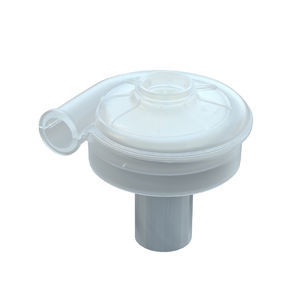

Home care ventilator centrifugal blower C75MS1

industrialelectronicdriver

A medium performance blower designed for higher flow. • - Dimensions: 70 (70.5) x 75 x 48 mm • - Available in 4 performance level (L2, L3, L4 and L5) • - At nominal voltage (24 V), the maximum pressure at zero flow is around 4’780 Pa (L2) ～ 9’700 Pa (L5), and the maximum flow at free flow is around 515 lpm (L2) ～ 650 lpm (L5). • - Blowers can be run at higher voltages for short periods to reach a higher performance, such as 12’700 Pa at zero flow(L5), or 730 lpm at free flow (L5). • - Available in 12 VDC on demand. • - This blower is also available in sensor-less version (without Hall Sensors) or with integrated electronics • - This particular blower uses a brushless motor and needs a driver to operate.
