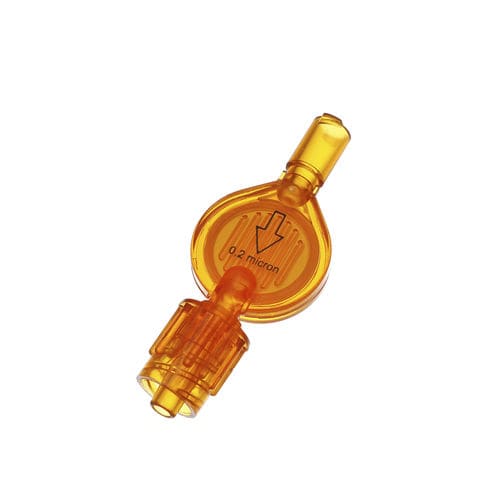

Membrane filter

for liquidshydrophobicfor chromatography

BQ in-line membrane filters are widely used in drug and fluid delivery for the removal of bacteria and large aggregates or particulate material generated during preparation, handling and infusion of drug combinations used in various patient therapies. – One vents for faster air elimination during priming – Wide range of connectors – Non-vented version available – Amber tinted housing for photosensitive drugs – Latex, PVC and free of animal origin substances Max operating pressure: 3.6 bar (52.2 psi) Minimum Water Bubble Point: 0.2μm: 3.7 – 4.8 bar 1.2μm: 0.7 – 1.0 bar 5.0μm: 0.15 – 0.3 bar Operating temperature: 5-40°C Biosafety: Materials comply with ISO 10993 Air Flow: PTFE Hydrophobic membrane:> 20 scc/min @ 100mbar Materials of construction: Housing: Clear or Amber MABS and membrane Filter media: Hydrophilic PES membrane 0.2 , 1.2 or 5.0μm Vent: Hydrophobic PTFE membrane 0.03 μm Minimum Water Flow Rate: 0.2 μm: > 5 ml / min at 100 cm (31.5 in.) water head pressure 1.2 μm: > 40 ml / min at 100 cm (31.5 in.) water head pressure 5.0 μm: > 55 ml / min at 100 cm (31.5 in.) water head pressure Priming Volume: Tubing: 0.4 ml FLL to RMLL: 0.6 ml
