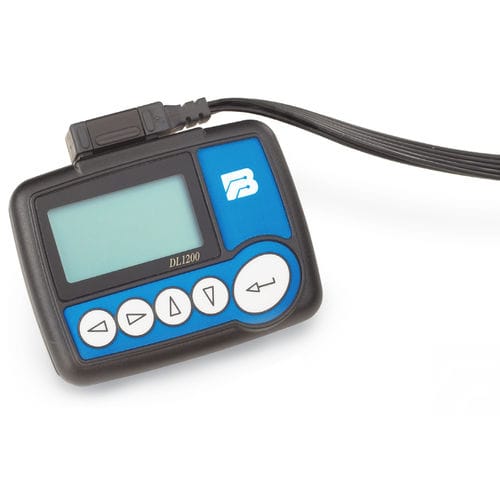

3-channel Holter monitor DL 1200 Series

2-channel8-channel9-channel

High Resolution Digital Holter Monitor • Fully Programmable, High Fidelity, Research Grade Performance – Sample rate up to 1024 samples per second – 4x data over sampling – No data compression – 12 bit resolution • 10 Wire Integrated Patient Cable with Standard Clinical Configuration – Industry standard 12 lead configuration • Removable Compact Flash Memory Card – 1 GB records up to 24 hours of true 12-lead ECG at 1024 sps • Large LCD Display – Provides on demand ECG view – Confirms programming instructions – Visual confirmation of patient hook up • Easy to Use 5 Button Keypad for Programmable Data Entry • Pacemaker Detection • Single AA Battery Operation • Small Rounded Shape for Patient Comfort Functional Channels ............................................. 2, 3, 8 or 9 Channel Recording Resolution ............................................ 8, 10 or 12 Bit Sampling Recording ............................................ Full Disclosure Data Transfer ....................................... Removable Compact Flash Sample Rate ........................................ 128-1024 Samples Per Second Frequency Response .......................... 0.05Hz to 60Hz @ -3db ECG Signal Verification ....................... LCD Pacemaker Detection .......................... Programmable On/Off Memory Recording Time ................................... Up to 48 Hours Type ..................................................... Compact Flash Capacity
