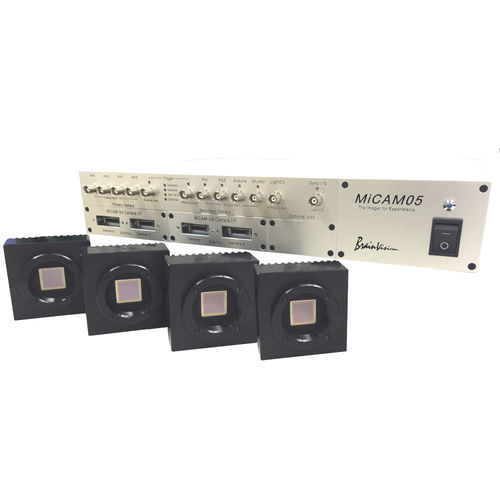

Fluorescence preclinical imaging system MiCAM05-N256

MiCAM05-N256 is a high-speed optical mapping system that captures and visualizes small changes in fluorescence intensity from brain and heart stained with fluorescent probes, such as voltage sensitive dye and calcium dye. Cardiac sample: - Langendorff perfused isolated heart - Cultured cardiomyocytes - Heart slice - Embryonic heart - In Vivo heart Neuro sample: - In Vivo brain - Brain slice - Cultured neurons Fluorescent probe etc.: - Voltage sensitive fluorescent dyes such as Di-4-ANEPPS and FluoVolt - Calcium-sensitive fluorescent dyes such as Fluo-4 and Cal520 - Fluorescent proteins such as GECI, GEVI, FRET - Intrinsic signals based on hemoglobin and flavoproteins Main features: - Custom CMOS image sensor specialized for optical mapping - Spatial Resolution: 256 x 256 - 32 x 32 pixels - Image Sensor Size: 17.6mm x 17.6mm - S/N Ratio: > 71dB - Maximum Frame Rate: 1,923fps (256 x 256px) / 5,556fps (128 x 128px) / 20,000fps (32 x 32px)
