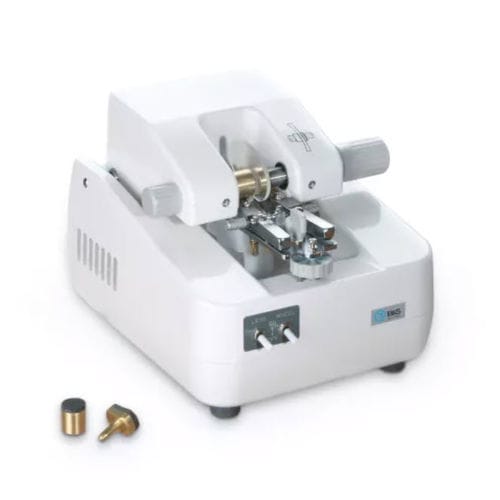

Manual optical lens processing system 2894 00N

optical lens grooverpaternless

The original from Japan is really unique: With high quality materials like brass bushing and quality bearings, a fully developed motor technology and perfectly manufactured. For proffesional use, for high reliability, for better results than ever before. Key reasons for us to recommend this high quality machine. - Large, specially supported guide rollers enable grooving of even difficult lens shapes - Stepless adjustable grooving depth - Grooving parallel to rear face possible - 4 different grooving types to choose from - Controlled grooving parallel to front or back surface - Free wheel grooving - Manual controlled grooving - No adaption on lens curvature necessary - With an easy change it ist possible to make a lenti cut by using No. 289320 - Including standard groove wheels and half eye frame adaptor - Additional grooving wheel available -----Technical data----- Groove depth: 0 to 0,7mm (stepless adjustable) Groove width: 0.55 mm Thickness of lens: 1.5 to 11mm Lens diameter: 25 to 70mm Grooving time: approx. 40 sec/ lens Power: 57 W Power usage per 10 min: 0,0095 kWh Voltage: 230 V Size: (w x h x d): 170 x 160 x 210 mm Weight: 2.7 kg
