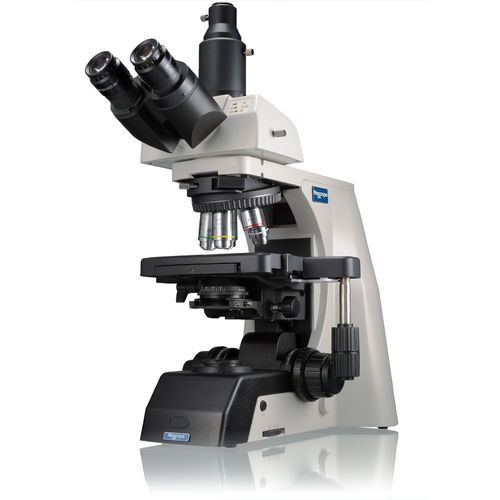

Optical microscope NX20910

laboratoryfor researchbiological

The NEXCOPE NE910 microscope offers excellent optical performance and ease of use, and is ideal for scientific tasks. It is the perfect laboratory microscope for life sciences, histology, microbiology etc., and comes with an attractive price tag. LENSES The planachromatic infinity lenses ensure a flat field of view. Together with the swing top condensor (NA 0.9/0.25), the lenses deliver a high contrast and high resolution over the entire visible spectrum. The nosepiece has six positions and is equipped with four lenses as standard (4x, 10x, 20x, 40x). These feature an M25 thread and a parfocal length of 60 mm. The 40x lens has a spring-loaded protection mechanism. EYEPIECES The eyepieces' large 25 mm field of view allows you to view a very wide area. The high eyepiece head is ideal for spectacle wearers. A rubber edge provides protection upon eye contact. A dioptre compensation of -5 to +5 can be set individually for each eyepiece. The interpupillary distance can be adjusted between 47 mm and 78 mm. ILLUMINATION The powerful 3 W LED has an adjustable brightness and provides optimal illumination with excellent colour reproduction. The colour temperature stays constant when the light is dimmed. The light is equipped with an Eco sensor that switches the light off when it is not in use. The condensor with an iris diaphragm and swing top is adjustable and provides Köhler illumination together with the light source, which is also equipped with an iris diaphragm. Markings on the knurled ring allow you to adjust the aperture to the chosen lens at any time. The auxiliary lens can be pulled out to quickly switch the aperture from 0.9 to 0.25, e.g. to examine the specimen.
