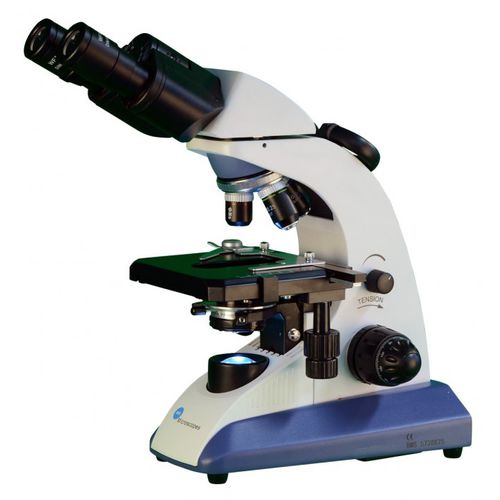

Optical microscope FLArQ BINO

for teachinguprightbinocular

The BMS EduLed microscope is a high quality, robust and well equipped microscope ideal for school, study and hobby purposes. Rechargeable batteries enable the BMS EduLed to function also as a portable field microscope. The transmitted light illumination of BMS EduLed FLArQ is performed by a LED with dimmer (for continuous variation of light intensity) and a height-adjustable Abbe condenser with iris diaphragm. This allows the instrument to have not only the usual 4x, 10x and 40x objective but also the 100x oil immersion objective. These all are DIN achromatic Semi Plan objectives. With the 10x wide field eyepieces you get a total magnification range of 40x-400x (optional 600x and/or 1000x). The optical ingredients provide sharp, clear and true-colour images with high-contrast. The microscope has a 360º rotatable binocular viewing head, coaxial coarse and fine focusing drive and a mechanical stage which has ergonomic arranged coaxial controls for easy handling. All the parts are locked to the microscope. The microscope has antibacterial paint on the metal parts and antifungus coating on the optical (glass) parts. The microscope offers standard 3 types of electrical use in one microscope: 100~230V connection through the included power cable Recharges automatically while connected to the electrical power. Rechargeable batteries available as an accessory (article number 29554; rechargeable battery AA, pack of three) Standard non-rechargeable batteries, type AA, 1,5 V, 3 pieces Technical specifications: Optical System: finite optical system, 160 mm Eyepieces: extra large 2 x WF 10x/18 mm (one with pointer) Head: binocular, 360º rotatable Tube: 30º inclined
