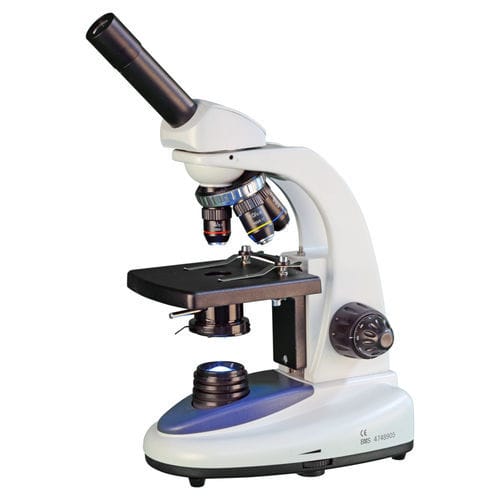

Optical microscope 146 FLAsQ

laboratoryuprightmonocular

The BMS 146 FLAsQ is the second model of the Advanced Plus range. It has the fine shape of the 146 with the reversed nosepiece. The main difference between this model and the other types of 146 is the spiral condensor and stage clips. All the parts are locked to the microscope. The microscope has antibacterial paint on the metal parts and antifungus coating on the optical (glass) parts. The microscope offers standard 3 types of electrical use in one microscope: 100~230 V connection through the included power cable Recharges automatically while connected to electrical power. Rechargeable batteries available as an accessory (article number 29554; rechargeable battery AA, pack of three) Standard non-rechargeable batteries, type AA, 1,5 V, 3 pieces Technical specifications: Optical System: finite optical system, 160 mm Eyepiece: WF 10x/18 mm with a pointer, locked Head: monocular, 360º rotatable Tube: 45º inclined Antibacterial paint: yes Antifungus optics: yes Nosepiece: quadruple revolving nosepiece with click stops and reversed mounted Objectives: DIN achromatic 4x/0.10, 10x/0.25 and 40x/0.65 (spring loaded) Focusing mechanism: dual coaxial coarse and fine focus controls Stage: 120 x 120 mm metal plan stage with 2 stage clips and one finger touch lift Stage limit stop: preset and adjustable Condenser: Spiral condensor with a long adjustment lever, N.A. 1.25 with built-in iris diaphragm and filter holder Illumination: new generation High Power LED. Light intensity stepless adjustable through a rotary potentiometer. Cordless use: 3 hours charging time and 10 hours cordless working time (with optional rechargeable batteries)
