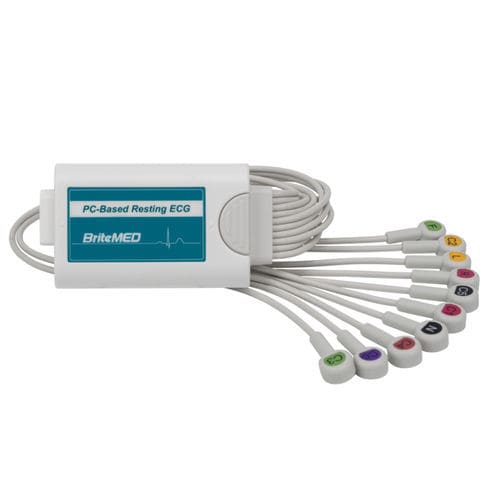

Resting electrocardiograph ECG-D12-10 series

12-channelcomputer-basedUSB

A portable 12-lead ECG with intelligent report management software Features •Real-time & quality ECG waveform display once captured •ECG report printed in A4 size for cost-effective advantage •Comprehensive software for ECG assitive interpretation •Defibrillator protection and pacemaker detection •Pocket size for carry-around applications & perfect for placing in telemedicine kit •Selectable patient cables create usability for different applications Specification Sensitivity - 5, 10, 20,40 mm/mV Sampling Rate - 1000 samples/second/channel Sampling Frequency - 0.05-150Hz Patient Leads - 12 standard leads Electrode Connection - 10 leads banana plug with snap connections Low Cut Filter - 0.05 Hz, 0.15 Hz, 0.3 Hz High Cut Filter - 30 Hz, 150 Hz, 250 Hz, off Hum Filter - 50 Hz, 60 Hz, off Defibrillator Protection - Yes Pacing Pulse Detection - Yes Common Mode Rejection - > 90dB Dimensions (L x W x H) - 99.7 x 60 x 23.2 mm Weight - 80g Operating Temperature - 10°C~40°C Storage Temperature - -20°C~50°C System Requirements - OS: Microsoft Windows 7 or newer OS is required PC display resolution (min.): 1280 x 768 PC requirement (min.): Intel® Core 1.5 GHz processor, 4GB memory size, 300 MHz graphics base frequency Safety Standards - Compliant with IEC/EN 60601-2-25 , IEC/EN 60601-1, IEC/EN 60601-1-2 Package contents - •ECG x 1 •10-electrode patient cable x 1 •USB cable x 1 •USB flash drive x 1 •Quick guide x 1 •Carry bag x 1
