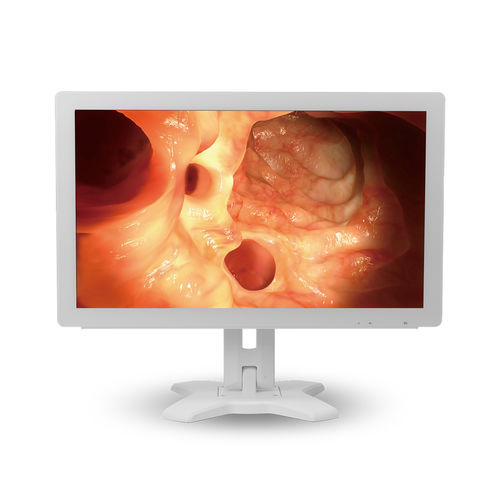

Endoscopy display MMS-21C series

full HDVGA21.5"

The FHD disinfectable endoscopy monitor with VGA, DVI-D, HDMI inputs •Equipped with HDMI input and loop-through output for wide applications •Full-HD LCD panel in high resolution/contrast ratio and wide viewing angle •DICOM GSDF/Gamma calibration for best image accuracy •Optional GPIO interface for customization •Adjustable display layout: picture-in-picture (PIP) and picture-by-picture (PBP) Specification Gamma Correction - Factory calibrated gamma 2.0 & DICOM Color Temperature - Factory calibrated 4500K, 5500K, 6500K, 7500K Power Requirement - Medical grade power adaptor: input: 100~240V AC 50~60Hz; output: 12V DC/5.42A Function Keys - OSD rotary knob x 1 Input source quick selection x 1 Monitor sleep x 1 Operating Temperature - 0°C~40°C Storage Temperature - -20°C ~60°C Medical Certifications - ANSI/AAMI ES60601-1,EN60601-1,CAN/CSA C22.2 No. 60601, FCC Class B part 18 Component - N/A CVBS - N/A Audio - Input: Phone jack x 1 Output 0.8W x 2 HDMI 1.4 (optional) - Input: 1 Output (loop through): 1
