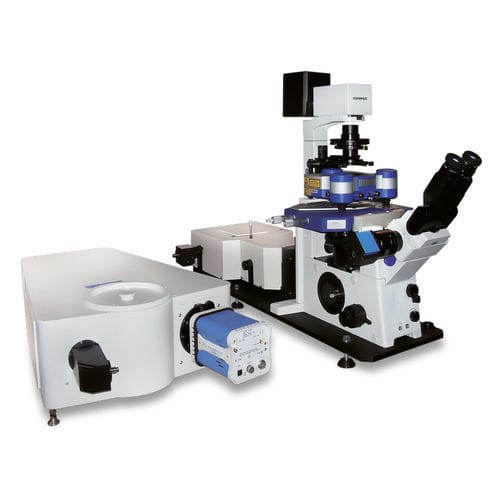

AFM microscope NanoWizard® NanoOptics

opticalRamannear-field

The NanoWizard® NanoOptics AFM is optimized for a broad range of applications ranging from nanoscale optical imaging by aperture and scattering-type SNOM to experiments involving interactions of light with the sample such as absorption, excitation, nonlinear effects and quenching. Cutting Edge Optical near-field experiments Collection of single photons and sub-wavelength resolution. Ideal for the study of optical surface properties, quantum dots and metamaterials. Unique Nanoscale optical imaging Seamless integration with advanced fluorescence techniques, Raman spectroscopy, and time-correlated single photon counting systems. Integrated port for SNOM applications. Nanomanipulation User-defined experiments Correlative data. Highest spatial resolution in the nano-meter range. Designed for stability and liquid applications. Ideal for BioTERS applications. FEATURES Cutting edge technology to study nanooptical phenomena The new NanoWizard® NanoOptics head comes with excellent physical and optical access to the sample from top and bottom as well as from front and side, even when the head and condenser are in place. Additionally, it has an integrated port for fiber SNOM applications. Because stability and reproducibility of the SPM-tip positioning and scanning are vital for applications requiring the collection of single photons over a long time period, the system has been optimized for it. Improved closed-loop control on 5 or 6 axes and highest scanner resonance frequency in z deliver a scanner performance previously not available in a commercial AFM. This ensures highest data quality for imaging and force measurements in air and liquids.
