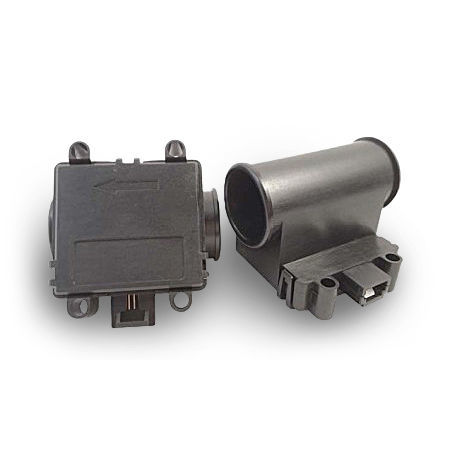

Flow sensor PMF4A00

medical

• Flow ranges: up to 500 SLM • Supply: 6 - 16 Vdc • Analog (voltage) or Digital (I2C) linear output • RoHS and REACH compliant • Media Compatibility: dry gases only For PMF4A00V-B (B for bi-direction calibration) Flow Rate = [(Vout - 3 V) / 2 V] x Full Scale Flow Rate For example, for PMF4A05-B full scale flow rate is 500 SLM. When Vout reads 2 V, the Flow Rate is: [(2 V - 3 V)/2V x 500 SLM] =-250 SLM (Reverse direction) Order I²C Digital Output models by specifying “D” instead of “V” in part numbers above. Please contact Posifa or your local distributor to place an order.
