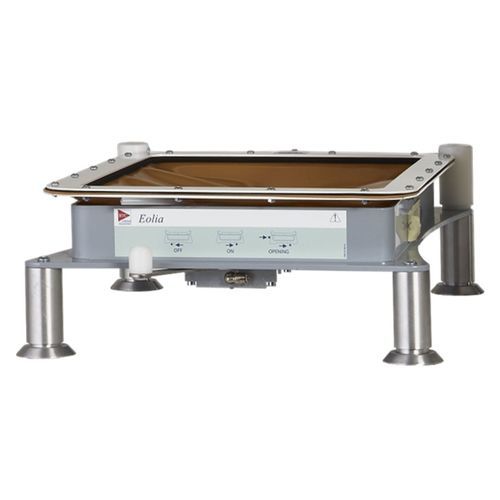

Orthopedic insole manufacturing thermosealer EOLIA

benchtop

The EOLIA range of Vacuum Press is made up of EOLIA (cold version) EOLIA HM and EOLIA HM DIGIT (heating versions). The large size of the workplate allow the simultaneous realise of a pair of insoles. The Vacuum system ensures maximum reliability and no maintenance. The EOLIA Vaccum Press only needs compressed air (40 It / min). The maximum vacuum is reached in less than 20sec. - Power supply: 230 V - 50Hz - Electric absorption: 1500 W - Air line inlet - In feed pressure: 5.0 - 7.0 bar - Flow-rate: 36 Nl/min - Connection pipe diam: 6x4 - Ambient working temperature and humidity: 10° - 38°C, 45 - 95 %
