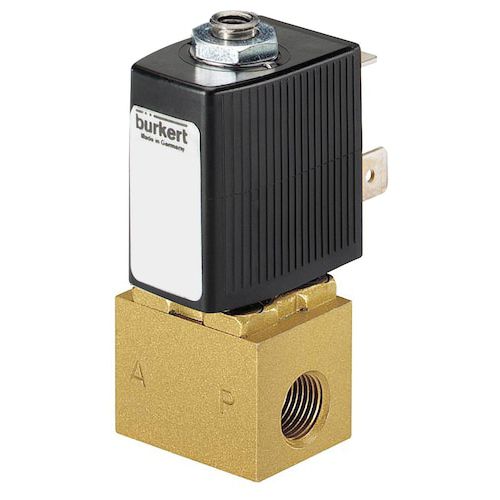

Medical valve 6012

solenoidmanualstainless steel

Valve 6012 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Push-in fittings can be selected for flexible hose connection. A banjo connection with banjo bolt is the ideal solution for easy direct mounting on a pneumatic drive. Optional manual actuation enables quick commissioning and optimal maintenance. In combination with a cable plug in accordance with industry standard Form B or DIN EN 17301-803 Form C, the valves satisfy protection class IP65. Direct-acting, compact small-format valve with diameter of up to DN 1.6 Screwed coil system Banjo threaded connection for direct mounting on pneumatic valves Simple and quick push-in, flange, or manifold installation Service-friendly manual override
