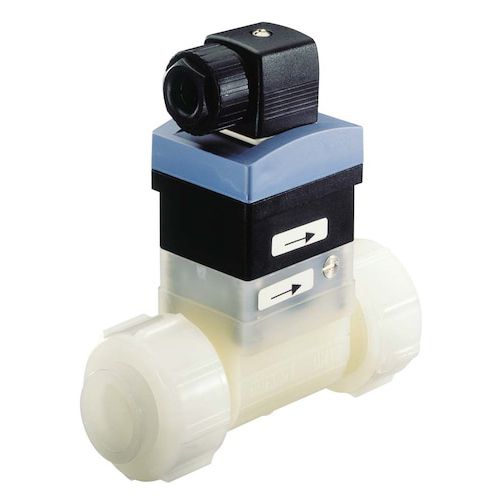

Flow sensor 8010

medicalprocess

Inline Paddle Wheel Flow Switch The Inline flow switch Type 8010 is specially designed for use in pure and water resembling fluids, free from air bubbles and magnetizable particles, to monitor minimum/ maximum values of flow. The switch is made up of a sensor-fitting (Type S010) and a transmitter (Type SE10), quickly and easily connected together by a Quarter-Turn. This device indicates the presence of a flow in the pipe by switching the Reed contact contained in the transmitter. The switching points min./max. for rising and falling velocities can be set with a screw within a defined range. Two transmitter variants are available: -Normally open (NO): The flow switches on the contact. - Normally closed (NC): The flow switches off the contact. These S010 sensor-fittings with different process connections are available in two versions: - with a short blade “Range 1” fitted for the fittings DN 15 to DN 40 - with a long blade “Range 2” fitted for the fittings DN 32 to DN 50. Economic integration in pipe systems without any additional piping Magnetic measuring principle Mechanical adjustment of setpoint
