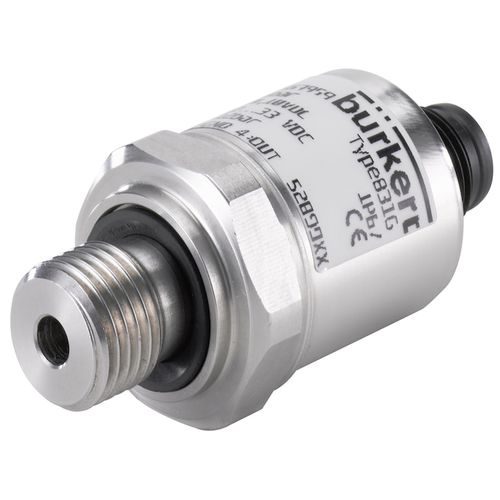

Pressure sensor 8316 laboratoryprocesswireless
Add to favorites
Compare this product
Characteristics
- Evaluation type
- pressure
- Applications
- laboratory, process
- Other characteristics
- wireless
- Pressure range
Max.: 300 bar
(4,351.13 psi)Min.: 0.05 bar
(0.73 psi)
Description
The compact Type 8316 pressure measuring device meets the highest requirements with regard to mechanical loading, EMC characteristics and operational reliability. It is particularly suitable for demanding industrial applications. For aggressive media where stainless steel is not resistant, process connections in PVDF are available.
Ceramic/thick film measuring cell
2-wire version for 4...20 mA output
Compact, stable construction for the highest operational reliability
