UV-vis spectrophotometer FastGene

for protein quantificationfor nucleic acid quantificationmicrovolume

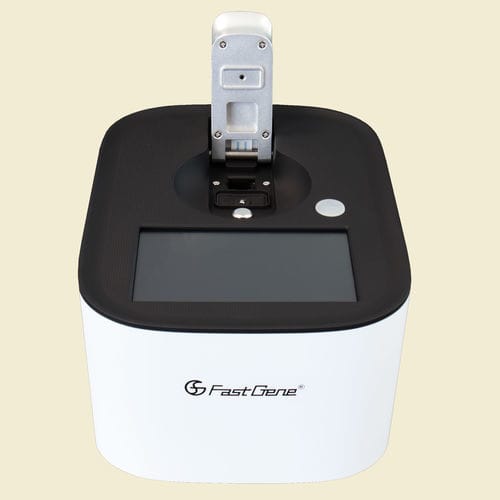

The FastGene NanoView Photometer is an ultra-compact three wavelength spectrophotometer. Integrating both a 2 µL microvolume-measuring mode and a larger volume cuvette-measuring mode, its microvolume capacity enables fast and easy quantification and analysis of nucleic acids and proteins by traditional UV-Vis absorption spectrophotometry methods. Focused spectral analysis Unlike the FastGene NanoSpec Photometer which performs a full spectrum analysis, the FastGene NanoView quantifies nucleic acids and proteins with highest reliability via absorption measurement at 260 nm, 280 nm and 600 nm. The 10 pre-programmed default measurement modes cover most so that no adjustment is needed. But customization is possible for those needing something special. SPECIFICATIONS Footprint - 12.5 cm W x 19 cm D Detector - Silicon photodiode Light Source - LEDs Measurement time - < 10 seconds Pathlength - 0.03 – 0.5 mm (auto ranging) Spectral resolution - ≤ 8.0 nm Absorbance precision - 0.002 A (0.5 mm path) Absorbance range - 0 – 40 Abs Detection limit (microvolume) - About 2 ng/μL (dsDNA) Photometric range (10 mm equivalent) - Cuvette: 0 – 2 A, accuracy: 3% (at 1A/mm at 280 nm) Maximum concentration - 2,000 ng/µL (dsDNA), 60 mg/µL (BSA), 28.8 mg/µL (IgG) Storage - 32 GB internal storage Connectivity - USB-A, USB-B, RS232C, Bluetooth Display - Touch-screen 4.3-inch, 480 x 272 pixel color display Minimum sample volume - 2 µL Power - 100-240V, 50-60Hz Warranty - 1 year
