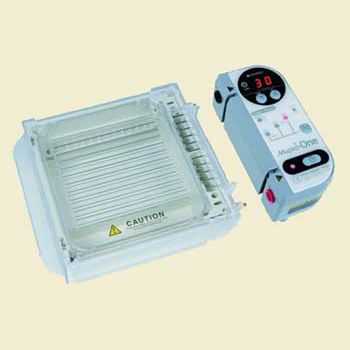

DNA sequencing electrophoresis system Mupid One

benchtopcompact

The Mupid-One Electrophoresis System is one of the most convenient DNA separation systems on the market today. It has many novel features including a separated power supply, a simple buffer drainage system, support for multi-channel pipettes, and seven output voltage settings (18, 25, 35, 50, 70, 100 and 135V) as well as a timer function for delivering the perfect run every time. If you have made the switch from toxic ethidium bromide to safer alternatives such as Midori Green DNA Stain, then you’ll be impressed with the blue LED Illuminator add-on for this system. This option visualizes and detects DNA fragments during the run so you won’t need to make any guesses. The illuminator is used in place of the MUPID lid and includes an orange colored filter to protect your eyes and allow you to easily check the results without wearing goggles. The LED source produces light with a narrow emission peak at approximately 470 nm, effective for the excitation of safe nucleic acid stains such as Midori Green and SYBR dyes. The separated DNA is not damaged by the light emitted by LEDs, because it contains no short-wave UV light. Sensitivity down to 2 ng DNA can be achieved using the optional illuminator. SPECIFICATIONS Integrated Power Supply - Yes Power - AC100V-240V, 50-60Hz Output Voltage - 18 V, 25 V, 35 V, 50 V, 70 V, 100 V and 135 V. Timer - 0 and 99 min Memory Function - Yes Safety Lid - Yes Bath Volume - 270 – 320 ml Comb Size(s) 13-26 wells (13 wells; 9 mm spacing, 26 wells: 4.5 mm spacing) Multi-Channel Pipette Compatible Yes. Gel Casting Stand 125 mm x 140 mm x 20 mm (LxWxH) Makes 2 small gels or 1 large gel Size - 162 mm x 183 mm x 59 mm (L x W x H)
