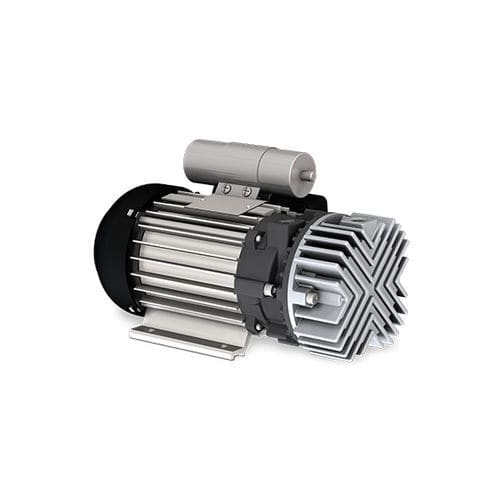

Medical vacuum pump SECO SV 1003 D
electronicrotary vaneoil-free

Medical vacuum pump - SECO SV 1003 D - Busch Vacuum Solutions - electronic / rotary vane / oil-free

Add to favorites

Compare this product

Characteristics

Applications: medical
Technology: electronic, rotary vane
Options: oil-free, dry, lubricated
Flow: 3 m³/h, 5 m³/h
(105.94 ft³/h, 176.57 ft³/h)
Power: 0.1 kW, 0.14 kW
(0.14 hp, 0.19 hp)
Pressure: 150 mbar
(2.18 psi)
Weight: 5.2 kg, 6 kg
(11.5 lb, 13.2 lb)
Length: 239 mm, 272 mm
(9.4 in, 10.7 in)
Width: 144 mm, 147 mm
(5.7 in, 5.8 in)
Height: 142 mm, 143 mm
(5.6 in, 5.6 in)

Description

The dry solution for handling applications Dry-running rotary vane vacuum technology Robust construction Lifetime-lubricated bearings Compact dimensions State-of-the-art precision manufacturing Benefits SECO SV dry-running rotary vane vacuum pumps are the ideal choice for any application where reliable, oil-free vacuum is required. They are perfectly suited for use in pick and place applications for clamping and holding, the medical, electronic, packaging and printing industry. Thanks to self-lubricating rotor vanes, no operating fluid is necessary, ensuring a completely dry operation. Their compact dimensions allow installation to be carried out almost anywhere with ease. Compact Direct-drive construction Reliable Robust construction, proven performance, self-lubricating vanes, no operating fluids
