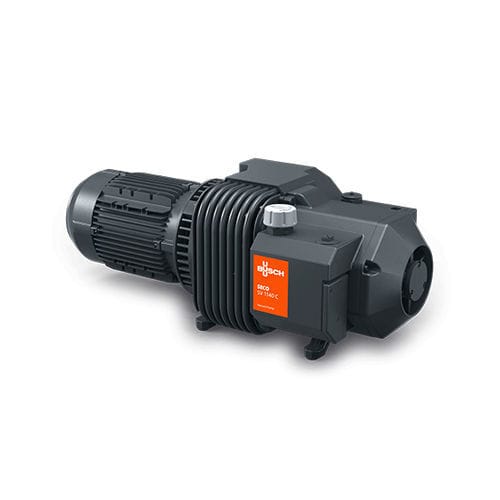

Medical vacuum pump SECO SV 1063 B
electronicrotary vaneoil-free

Medical vacuum pump - SECO SV 1063 B - Busch Vacuum Solutions - electronic / rotary vane / oil-free

Add to favorites

Compare this product

Characteristics

Applications: medical
Technology: electronic, rotary vane
Options: oil-free, lubricated, high-performance
Flow: 55 m³/h, 62 m³/h, 83 m³/h
(1,942.31 ft³/h, 2,189.51 ft³/h, 2,931.12 ft³/h)
Power: 1.7 kW, 2.2 kW, 3 kW
(2.31 hp, 2.99 hp, 4.08 hp)
Pressure: 100 mbar
(1.45 psi)
Weight: 75 kg, 76 kg, 77 kg
(165.3 lb, 167.6 lb, 169.8 lb)
Length: 763 mm, 798 mm, 849 mm
(30 in, 31.4 in, 33.4 in)
Width: 375 mm, 428 mm
(14.8 in, 16.9 in)
Height: 342 mm, 346 mm
(13.5 in, 13.6 in)

Description

The dry solution for handling applications Dry-running rotary vane vacuum technology Reliable oil-free vacuum generation Robust construction Lifetime-lubricated bearings Compact dimensions State-of-the-art precision manufacturing Benefits SECO SV dry-running rotary vane vacuum pumps are the ideal choice for any application where reliable, oil-free vacuum is required. They are perfectly suited for use in pick and place applications for clamping and holding, the medical, electronic, packaging and printing industry. Thanks to self-lubricating rotor vanes, no operating fluid is necessary, ensuring a completely dry operation. Their compact dimensions allow installation to be carried out almost anywhere with ease. Compact Direct-drive construction Reliable Robust construction, proven performance, self-lubricating vanes, no operating fluids
