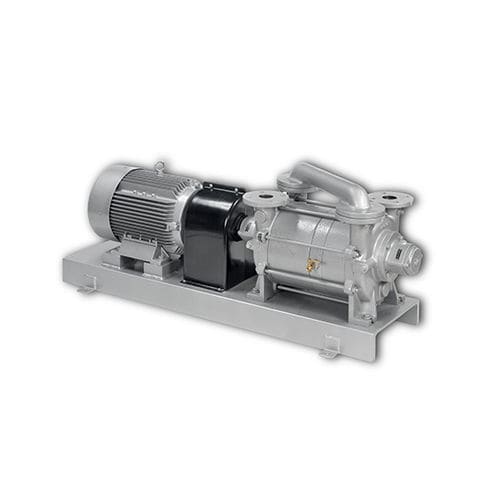

Medical vacuum pump DOLPHIN LB 0063 A
liquid ring

Medical vacuum pump - DOLPHIN LB 0063 A - Busch Vacuum Solutions - liquid ring

Add to favorites

Compare this product

Characteristics

Applications: medical
Technology: liquid ring
Flow: 60 m³/h, 110 m³/h, 140 m³/h, 180 m³/h
(2,118.88 ft³/h, 3,884.61 ft³/h, 4,944.05 ft³/h, 6,356.64 ft³/h)
Power: 3 kW, 4 kW, 5.5 kW
(4.08 hp, 5.44 hp, 7.48 hp)
Pressure: 33 mbar
(0.48 psi)
Weight: 77 kg, 78 kg, 103 kg, 119 kg
(169.8 lb, 172 lb, 227.1 lb, 262.4 lb)
Length: 489 mm, 529 mm, 596 mm, 656 mm
(19.3 in, 20.8 in, 23.5 in, 25.8 in)
Width: 250 mm, 270 mm
(9.8 in, 10.6 in)
Height: 320 mm, 405 mm
(12.6 in, 15.9 in)

Description

Reliable vacuum for a variety of chemical processes Extremely high vapor and particle tolerance For harsh process conditions Various sizes and versions Different operating fluids possible Benefits DOLPHIN LA/LB is our series of robust and reliable liquid ring vacuum pumps in base plate design. Their proven operating principle allows them to be used in many sectors of industry. Even demanding applications, such as evacuating saturated gases and vapors are possible without problems. Different operating fluids may be used according to process conditions. Thanks to the modular design, various assemblies are possible. The precisely dimensioned range of sizes, a wide variety of shaft sealing options, choice of accessories and construction materials allows you to find the perfect DOLPHIN LA/LB for your process. DOLPHIN LA are single-stage vacuum pumps whereas DOLPHIN LB have two stages for a higher vacuum. Robust Proven technology, durable two-stage construction Reliable Extremely high vapor and particle tolerance Flexible Wide range of construction materials, including cast iron (EN-GJL-200), many grades of stainless steel and even titanium, ATEX-certified version available (Cat 1(i)/2(o) IIC T5), operating fluids other than water possible, operation as compressor possible
