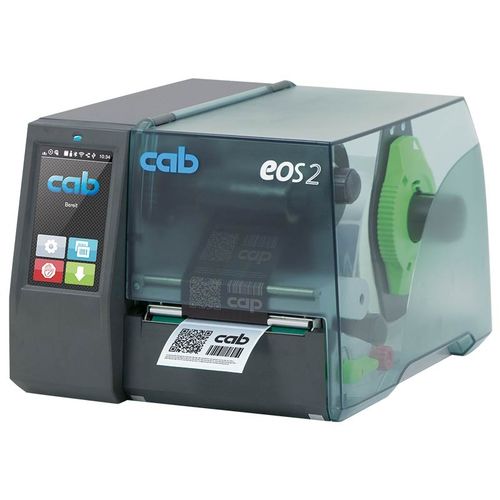

Label printer EOS series

thermal transfercompactportable

One concept, two sizes The EOS series combines all functions of a solid label printer with highest operating comfort. Mobile printing in production, warehousing or agriculture, wherever labels are required and access to electricity is missing. 24 V input voltage enable the printer to be power supplied by any powerful battery. For technical battery data see accessories Details 1 Roll holder The label roll is inserted and automatically centered when closing. 2 Ribbon holder The stop can be adjusted according to the ribbon width. 3 Print head 203 / 300 dpi In case of cleaning or wear, the print head can be replaced easily by hand without tools. 4 Label sensor - gap or reflective The sensor position can be adjusted via a spindle using the red rotary knob. The chosen position is indicated by a LED. 5 Print roller DR4 In case of cleaning or wear, the print roller can be replaced without tools. 6 Material guide Using the rotary knob, the guides can be adjusted to the material width 7 Tear-off plate made of thin sheet steel; jagged, so labels are cleanly separated Operation panel 1 LED signal: Power ON 2 Status bar: Data reception, Record data stream, Ribbon pre-warning, SD memory card / USB memory stick, Bluetooth, WLAN, Ethernet, USB slave, Time 3 Printer status: Ready, Pause, Number of printed labels per print job, Label in peel-off position, Awaiting external start signal 4 USB slot for the Service Key or a memory stick, to load data in the IFFS storage
