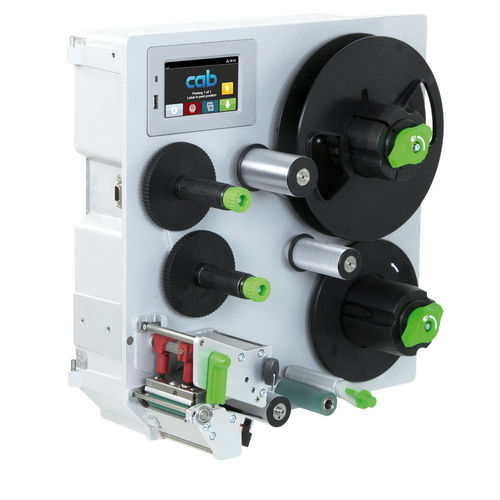

Thermal printer HERMES Q

labelautomaticmedical

All units can provide an unwinder for picking up rolls with maximum diameters either 205 mm or 305 mm. Directions to which dispense labels All units can be designed for providing labels either to the left or to the right. Orientations of assembly All the units can be rotated vertically by at most 360° or assembled in horizontal orientation. Operation panel Self-explanatory symbols are on display. The device can thus be operated intuitively and settings be configured easily. 2 Ribbon holder On the basis of three-part tightening axles, ribbons can be replaced easily and quickly. 3 Rugged metal chassis It is made of cast aluminum. All the parts are assembled to it. 4 Applicator It is assembled to hinge pins. It can be pivoted in case of maintenance or if materials have to be replaced. 5 Pressing plungers One is fixed near the chassis wall. The second one is pushed to the label margin, as far as necessary to evoke a good print image. 6 Print head Units of the same width are interchangeable. Replacement requires only few steps.
