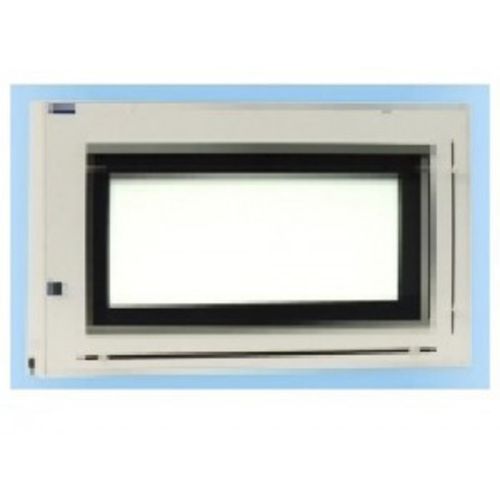

1-screen X-ray film viewer LXJ series

Stove enamelled steel structure, thickness 0,8 mm; Fire epoxy painting color peel RAL 9010; Smelted opaline plexiglass screen; Neon tubes of 6.000°Kelvin with high frequency reactors feeding; Upper and/or central film holder; Speed bipolar switches on the front comp0lete with dimmer which allows a very good light regulation from 100% to 10%; External fuses lagging type 5×20 (positioned on the bottom right side); Feeding cable complete with schuko plug, CE 3. 0,75 ; Predisposed for wall installation through expansion dowels; Illuminator is made according to Directive 93/42/CEE – Medical Devices – Class 1 And Directive 73/23 CEE (Low tension) 89/336 CEE (Electromagnetic compatibilità) The construction meets Norms EN 60601 -1,2 / Din 6856 -1,2; Feeding 230V / 50Hz + earth; Maintenance : recurrent cleaning (each 6 months) of the internal screen.
