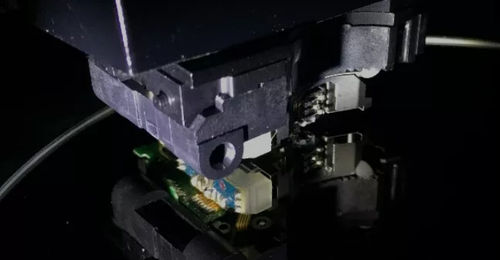

Microarray scanner Wafer

Whole Wafer Scan——High Throughput Platform Whole Wafer Image Capturing Image resolution: 20,000 x 20,000 pixels (~1.6GB), 10um/pixel Image format: TIFF Whole Wafer Image Analyzing Auto-alignment and auto-circling Resolution: 2, 5, 10, 40 μm Laser excitation wavelength: 532 nm and 635 nm Laser power: ​532 nm: 13+/-10% mW 635 nm: 13+/-10% mW Compatible Fluorophores: Cy3 & Cy5 Wafer size: 4”~12” Si/Glass wafer Scan area: whole wafer Loader capacity: 1 wafer Detection type: Dynamic focus with real-time confocal and 2 PMTs Scan speed: 21 mins @10 μm (8" wafer) Sensitivity: <0.2 fluoro/μm² Dynamic range: 10⁴ Digital resolution: 16 bits File format: TIFF Operation software (BioScan control & BioImage Analyzer)
