Data acquisition system Triggerscope 4

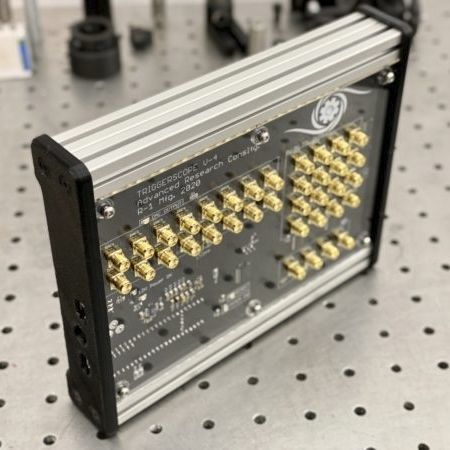

The Triggerscope 4 is a new multifunction, sequence-capable high speed TTL I/O and DAC solution for machine vision, microscopy, R & D, metrology and other demanding applications. It has full support integrated into µManager and MetaMorph and can be used as both as a simple interface for high speed multichannel imaging, or programmed for more esoteric configurations. Additional information Features On Board LED indication for READY, Trigger, Output and input lines. Direct SMA Breakouts DAC output to -10/+10V External Power Switch Dynamic Range Selection for DAC Range – 0-5V, 0-10V, -10/+10V, -2.5/+2.5V Fastest Microprocessor available – 600 Mhz 16GB Sd-Card Memory Access A new Real Time Clock is included for better timing over long duration experiments and delays. DAC update rates can be overclocked, to a maximum frequency of 270kHz. Integrated and simplified external controls for easier operation. 4x Trigger Inputs Galvo Control Piezo & Fast focus control Laser, LED, and AOTF control High speed camera triggering XY Stage control Adaptive optics Liquid Handling/Perfusion Liquid Lenses Spinning Disk Confocal Control Embedded Systems OEM integration Filter Wheels Dichroic Cube switchers Strobe Capture Specifications DAC Output -10/+10 VDC 16-Bit Resolution @ +/-40mA Drive DAC Channels 16 Female SMA Connectors TTL Output 0V – 5V DC 200-500mA Drive TTL Channels 16 Female SMA Connectors Trigger Inputs 4 Female SMA Connectors Switch Time <10us TTL & DAC in Sequence Driver Support Multiple Micro-Manager, Metamorph, MatLab, Python3,
