Modular design allows for bespoke sensor combinations upon request
Housed within a 19” enclosure for convenient mounting into industry-standard test equipment racks
7” (180mm) full-colour touch screen interface with soft menu keys for a better user experience
Permanent or sampling modes available for extra functionality
All data is continuously logged and Excel compatible data can be downloaded via a USB memory stick
Operates on any worldwide mains voltage (90-260VAC)
Fully programmable alarm settings
Multi-language (Please contact for details)
Password protection feature for extra security

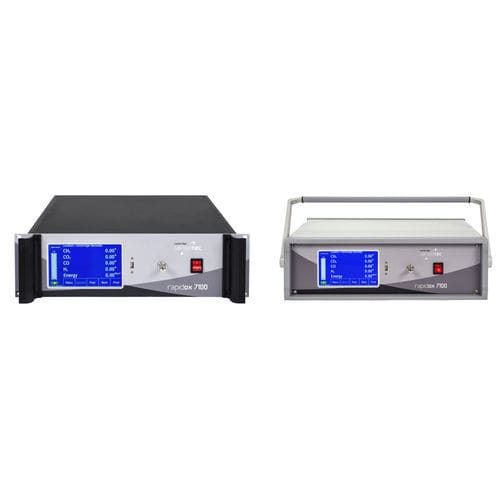

The Rapidox 7100 Multigas Analyser is a high specification instrument designed for the analysis, control and monitoring of process gas in a wide range of industries. It allows the option of selecting multiple gas sensing configurations to suit the particular application. The analyser is housed within a 19″ (482mm) enclosure for convenient mounting into an industry-standard test equipment rack.
Up to six gases are simultaneously measured using a range of high precision gas sensors; each sensor is specially designed and calibrated to avoid any cross-interference effects with the background process gas. Safety is ensured by the inclusion of flashback arrestors in the gas measuring circuit where required. Measurable gases include amongst others: CO2, CO, H2O, O2, C2H4, SO2, CH4, H2 and H2S.
