Temperature sensor Rapidox 2100-OEM-RSB-WALL

pressurehumiditygas

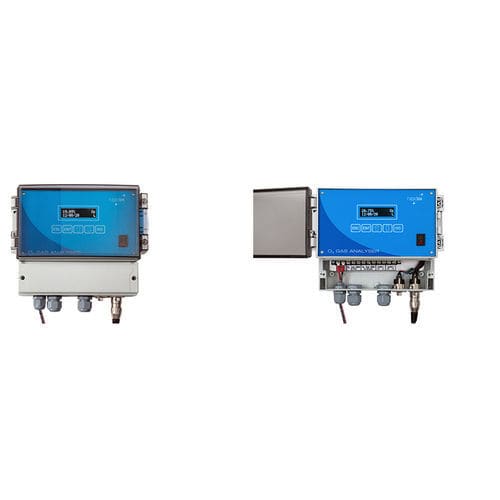

Zirconia sensor supplied with bespoke cable IP65 wall mount polycarbonate enclosure Fast and accurate measurement of oxygen Pre-calibrated sensors for uninterrupted service Analogue and Digital outputs Data logging software Two programmable alarms Type K thermocouple option 24Vdc 20W power Complies with EMC Directive 2004 / 108 / EC. UL/ETL Certification Number: UL-61010-1 The Rapidox 2100 OEM-RSB-WALL is a wall mount version of our miniaturised 24V OEM oxygen (O2) analyser. The compact (4.5″ x 3.0″) circuit is integrated into a neat IP65 wall mount polycarbonate box, with a clear smoked hinged lid. Behind this is a clear OLED display and menu keypad. The box is completely electrically isolated and meets all UL and IEC standards for these types of enclosures. There are cable entry glands on the base for power cables and analogue / digital / alarm leads The analyser comes with a robust cabled zirconia sensor, which is ideal for providing fast and accurate remote in-situ gas analysis over the the full oxygen range 10-20ppm to 30% O2. An optional external pressure sensor socket is included as standard. Zirconia oxygen sensors are extremely rugged and particularly suitable for monitoring inert atmospheres and aggressive industrial applications directly within manufacturing processes such as metal 3D printers, soldering ovens and furnaces. High temperature (650°C) and vacuum applications are particularly suited to this model. The OEM has auxiliary sensor and temperature (type K) inputs for connecting additional sensors such as pressure, vacuum and dewpoint and can also monitor local ambient temperature and humidity conditions for improved stability.
