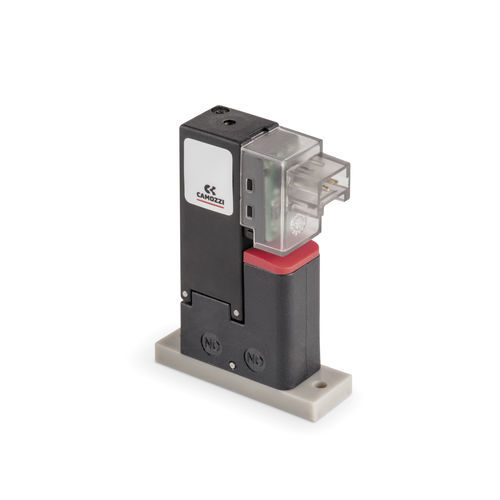

Solenoid valve Serie KDV

medicalgas-liquidmedia separated

2/2-way - Normally Closed (NC) 2/2-way - Normally Open (NO) 3/2-way - Universal (UNI) The Series KDV are solenoid valves designed to control critical media such as aggressive, high purity liquids or gases or thermosensitive fluids. These valves prevent the controlled media from interacting with the internal mechanical part of the valve. The orifices are open or closed by a separation element on which acts a mechanism moved by a solenoid actuator. To choose the most suitable model for a specific application, check the chemical compatibility of the medium with the available materials of body and seals. TECHNICAL FEATURES - Function - 2/2 NC - 2/2 NO - 3/2 NC - 3/2 NO - 3/2 UNI Operation - direct acting with fluid separation membrane Pneumatic connections - flanged for subbase or manifold Orifice diameter - 0.8 ... 1.3 mm Flow coefficient kv (l/min) - 0.2 ... 0.4 Working pressure - -0.95 ... 2.0 bar Working temperature - 0 ÷ 50 °C (FKM/EPDM) / 10 ÷ 50 °C (FFKM) Fluid - inert or corrosive liquids and gases compatible with the materials in contact Response time - ON ≤20 ms - OFF ≤20 ms Installation - in any position MATERIALS IN CONTACT WITH THE MEDIUM - Body - PEEK Seals - FKM - EPDM - FFKM ELECTRICAL FEATURES - Voltage - 6 ... 24 V DC - other voltages on demand Voltage tolerance - ±5% Power consumption - 4/1 W Duty cycle - ED 100% Electrical connection - connector mod. 121-8... - 300 mm flying leads Protection class - IP40 with connector
