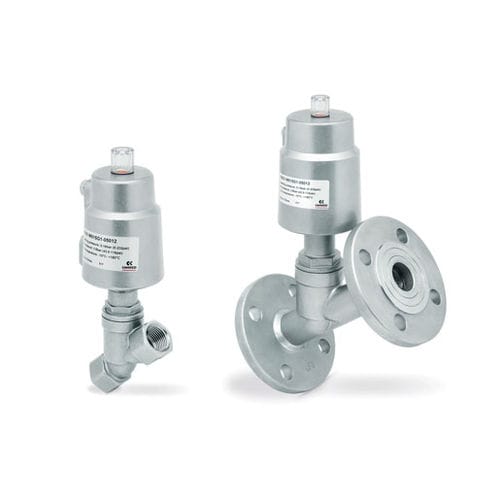

Gas valve Series ASX

stainless steelhigh-flow

2/2-way - Normally Closed (NC) and Normally Open (NO) 2/2-way - Double Acting (DA) Angle seat valves are available in different versions with regard to nominal diameter, type of fluid and process connections. They are able to manage media that are corrosive or contain suspended solid particulate matter and can be used in applications with high operating temperatures. The operation is determined by the pneumatic drive of a single acting, guided piston actuator with spring return. There are also models available with double acting actuators, without spring. For liquid media we recommend the models with flow direction under the seat. For gas or steam we recommend the models with flow direction above the seat. TECHNICAL FEATURES - Function - 2/2 NC - 2/2 NO - 2/2 Double Acting Operation - pneumatic, poppet type Pneumatic connections - 1/4 … 4“ with BSP/BSPT/NPT threads, flanged, welding ends, tri-clamp Nominal diameter - DN8 … DN100 Flow coefficient Kv (m³/h) - 2.2 … 132 Working pressure - 0 ÷ 2 … 16 bar Working temperature - -10 ÷ 180 °C (standard seals) / 25 ÷ 220 °C (high temperature seals) Fluid - water, air, steam, inert or corrosive liquids and gases (compatible with the materials in contact) Viscosity - 600 cSt. Max Installation - in any position MATERIALS IN CONTACT WITH THE MEDIUM - Body - 316 stainless steel (DN8 ÷ DN80) / 304 stainless steel (DN100) Seals - PTFE Internal parts - 316 stainless steel SPECIFICATIONS PNEUMATIC ACTUATOR - Actuator dimensions - Ø40 - Ø50 - Ø63 - Ø90 - Ø125 mm Actuator material - 304 stainless steel / aluminium (only for Ø125 mm) Piston material - aluminium
