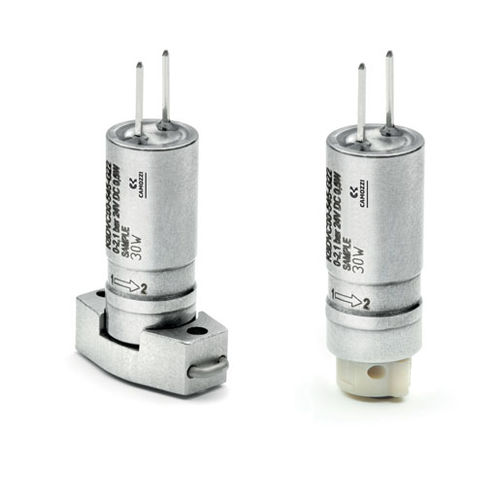

Medical valve Serie K8DV

solenoid

2/2-way - Normally Closed (NC) The K8DV solenoid valve was born to meet all the demands to shut off aggressive or heat sensitive fluids. Thanks to a fluid separation membrane, the fluid is isolated from all internal metal parts of the solenoid valve and avoids heating, even if minimum, generated by the solenoid positioned above. To choose the most suitable model for a specific application, check the chemical compatibility of the medium to control with the available materials of body and seals. Function 2/2 NC Operation directly operated with fluid separation membrane Pneumatic connections cartridge seat in manifold - on subbase Orifice diameter 0.7 mm Flow efficient kv (l/min) 0.1 Operating pressure 0 ÷ 2.1 bar (FKM/EPDM) / 0 ÷ 1.5 bar (FFKM) Operating temperature 5 ÷ 50 °C (FKM/EPDM) / 20 ÷ 50 °C (FFKM) Media inert or corrosive liquids and gases compatible with the materials in contact Response time (ISO 12238) ON ≤ 10 ms - OFF ≤ 15 ms Installation in any position MATERIALS IN CONTACT WITH THE MEDIUM - Body PEEK Seals FKM - EPDM - FFKM ELECTRICAL FEATURES - Voltage 3 ... 24 V DC - other voltages on demand Voltage tolerance ±10% Power consumption 0.6 W Duty cycle ED 100% Electrical connection 2 pins 0.5 x 0.5 pitch 4 mm Protection class IP00
