Rat operant conditioning system 80600A-CL

for behavioral research

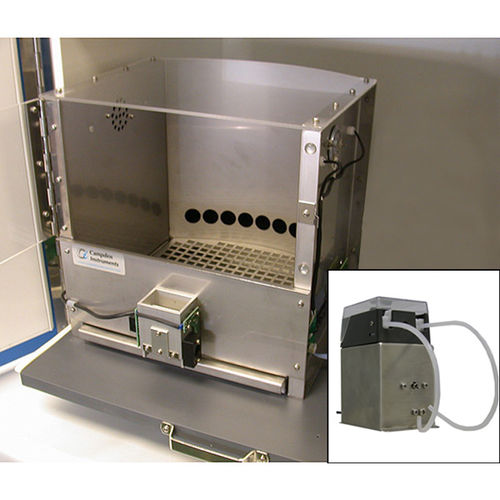

DETAILS A complete 5/9 hole Rat Test Chamber that includes integrated ambulatory photobeams, white noise distraction and dimming functions along with a deluxe reward area, liquid dispenser, and sound attenuating chamber. This chamber may be connected to the ABET Control system via two 25 way cables. The complete 9 hole plus dimming and white noise configuration uses 16 inputs and 16 outputs from a single ABET Interface module. Alternative programmable configurations are possible to make I/O available for 5 hole, dimming, white noise and levers. THE CHAMBER This carefully designed rat 9-Hole Test Chamber retains all the features of the box defined in over 60 published papers by T.W. Robbins and others. Not a detail has been overlooked including the floor, pan, reward area, nose pokes, house lights, speaker, and more. It is fully integrated into the sound cubicle SOUND ATTENUATING CUBICLE All 9-Hole Test Chambers are shipped mounted to a slide out shelf that slides easily in and out of a durable light and sound attenuating cubicle for easy cleaning and maintenance. The core of the cubicle walls is a medium density composite selected for its excellent sound attenuating properties. The walls are first treated with an opaque anti mold fungicide and then coated with an acrylic protective finish to provide an impact and abrasion barrier, and to resist urine, water, alcohol, heat or other staining. The cubicle includes a ventilation fan, external connectors for all power and control, and an observation optic.
