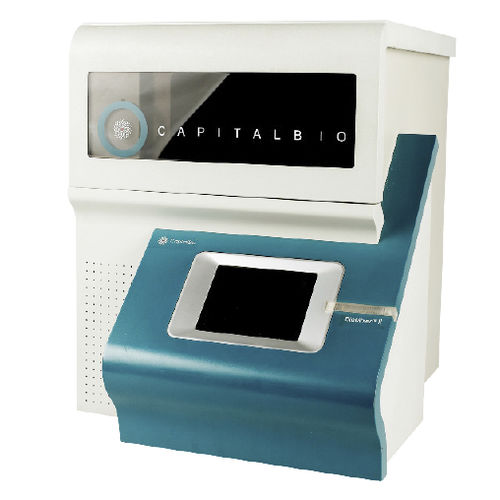

Automatic sample preparation system CapitalBio® BioMixerTMII

laboratorymixingwashing

The CapitalBio® BioMixerTMII is a microarray hybridization station that uses continuous 3-D motion to help the aqueous hybridization mixture spread evenly across the microarray surface in a temperature-controlled environment. This uniformly exposes each sample spot to the reaction reagent solution, resulting in increased reaction signal intensity and signal consistency. It is simple to use, with up to 6 or 12 microarray slides hybridized simultaneously. It comes with three interchangeable adapters for hybridization, washing, and mixing biochemical reagents in tubes. Features of CapitalBio® Microarray Hybridization Station When combined with CapitalBio's specially designed hybridization cassettes, uniform temperature and humidity are achieved. Unique 3-D motion guarantees the hybridization signal is homogenous over the whole microarray surface. Eliminates edge effects. Enhanced results evidenced in recent independent reports on microarray quality and performance, such as Patterson, T., et al., (2006) Nature Biotechnology 24: 1140-1150 and Shi, L., et al., (2006) Nature Biotechnology, 24: 1151-1161. LCD control panel. Suitable for hybridizations and immunoreactions on 25 mm × 75 mm slides or in tubes using different adaptors.
