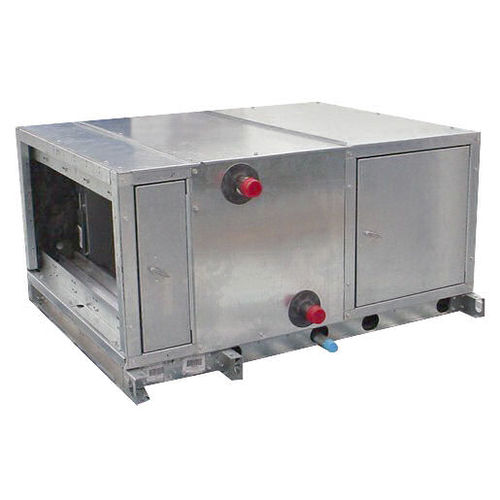

Clean room air handling unit AERO®

modular

Carrier's AERO 39L series air handlers are compact and fully assembled. They combine versatility with economical, dependable performance for heating, cooling, ventilation, and VAV (variable air volume) applications. Galvanized steel panels ensure structural integrity under all operating conditions. Double-walled hinged access doors also enhance structural stability and provide fast, easy access. A sloped, double-wall stainless steel drain pan controls condensate and complies with ASHRAE Standard 62. Carrier’s AHUBuilder® software makes selecting and optimizing the 39L air handler easy. Performance Features All units are shrink wrapped for complete protection during transit Air-flows ranging from 1,800 to 15,000 nominal cfm Horizontal and vertical draw-thru arrangements Single or double wall construction Belt driven, forward curved blowers Chilled water, hot water, direct expansion (DX), and steam coils Various coil face areas, fin densities, and circuiting arrangements Electric preheat available over a wide kW range Dual refrigerant circuits Parallel blade dampers on mixing boxes 1-1/2 lb density insulation or optional foil-faced 3 lb density insulation Water and steam coil performance rated and certified; and refrigerant coil performance rated in accordance with AHRI 410 Fan airflow performance rated and certified in accordance with AHRI 430 Reliability Features Galvanized steel construction Precision-balanced fan wheels limit vibration and eliminate abnormal stress on bearings and other components Internally mounted motor and belt drive package Sloped, double-wall stainless steel drain pan complies with ASHRAE Standard 62 ETL certified
