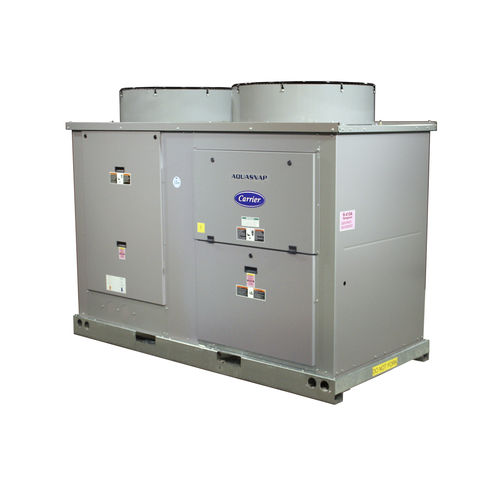

Air-cooled water chiller AQUASNAP®

water-cooled

The AquaSnap® 30RAP chiller is an effective all-in-one package that is easy to install and own. The chiller costs less to purchase and install than other chillers in its class, and operates quietly and efficiently. Value-added features include rotary scroll compression with optional digital compressor (010 to 090 units), Puron® refrigerant (R-410A), a low-sound AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, optional integrated hydronic pump package, and an accessory fluid storage tank (sizes 010-060 only). The 30RAP is now available with optional Greenspeed® Intelligence for the sizes 011-060, delivering a quieter and much more efficient unit with IPLV up to 16.8. Features Performance Features Full-load EER values up to 10.5 and IPLV values up to 15.8 Greenspeed Intelligence option for sizes 011-060 can raise IPLV up to 16.8 and sound reduction up to 4dBA ASHRAE 90.1 compliant / AHRI 550/590 certified High-efficiency rotary scroll compressors including digital compressor unloading (factory-installed option for 010-090 units) Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils (factory-installed option) Hydronic pump package (factory-installed option) with optional VFD on sizes 070-150 Operation from -20 to 120 F ambient temperature (factory-installed option or field-installed accessory on sizes 018-150 with low ambient head pressure control) Reliability Features ETL (and ETL, Canada) listed Galvanized steel cabinet with baked enamel powder or pre-painted finish on exterior panels passes 500-hour salt-spray test in accordance with the ASTM B-117 Standard
