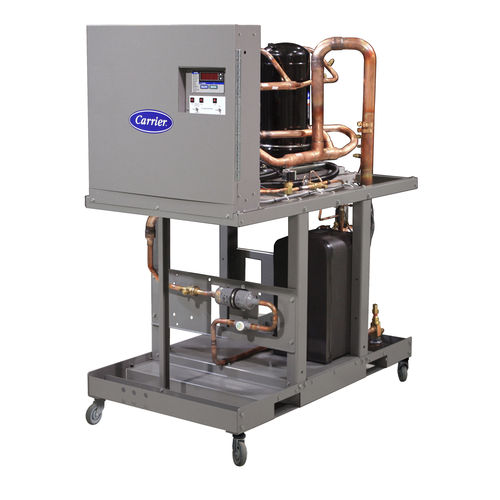

Water-cooled water chiller AquaSnap®

AquaSnap® 30MP packaged liquid and condenserless chillers feature a compact modular design that makes them ideal for easy replacement, retrofit, or new construction applications. Performance Features ASHRAE 90.1 compliant PIC 6 touchscreen controls High-efficiency scroll compressor Quiet, reliable operation Easy-to-use controls Energy management module minimizes chiller energy consumption (factory-installed option or field-installed accessory) Heat recovery capability up to 140°F (60°C) Modular capability to install up to eight (8) modules together to reach capacities up to 640 Tons (2,250 kW) Reliability Features Hermetic-type filter driers Loss of refrigerant charge protection Low control voltage (to unit) protection Thermal overload protection Pressure overload Electrical overload through the use of definite-purpose contactors and calibrated, ambient compensated, magnetic trip circuit breakers Standard 60 Hz unit listed with ETL and ETL, Canada, and built in accordance with ASME requirements Maintenance Features Over 15 diagnostic functions Moisture indicating sight glasses Installation Features Single point electrical connection Shipped with R-32 (30MPW) or nitrogen (30MPA) holding charge Fits through standard 36-in. (91.4 cm) doorway Factory-assembled and shipped with complete internal piping and wiring and essential controls and protective devices Control power transformer Dual circuit, single module (33-ton (116 kW) BACnet MS/TIP or IP compatible
