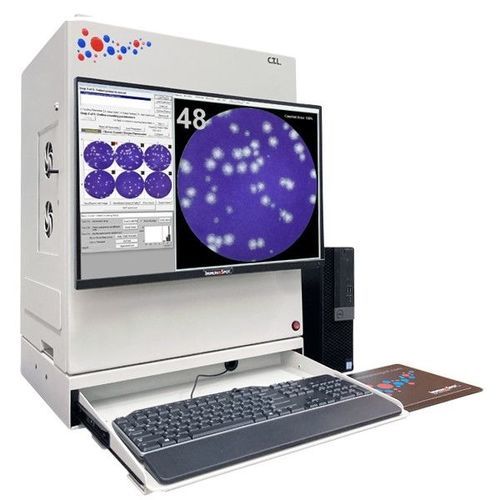

LED microplate reader S6 Macro M2

ELISA6-well24-well

This model’s optical resolution is designed for white light image analysis in the macroscopic spectrum. It has been an industry leader for colony counting in larger well formats; however, this instrument’s motorized zoom optics also extend the field of analysis to 96-well plates. Colonies of up to 12 different colors can be differentially counted in the macroscopic range, in larger well formats. The S6 Macro M2 is high-throughput capable – up to 400 plates per run when equipped with our automated plate loader. It is specifically designed for regulated or academic visible light analysis, supporting 21CFR part 11 compliant workflows. Specifications Applications Single and Double-Color ELISPOT Viral Infectivity and Neutralization Assays, e.g.: FRNT / FRA PRNT / Viral Titer Assays Bacterial and Yeast Colony Counting 12 Distinct Visible Light Color Planes ELISA Nucleic Acid and Protein Quantification Visible Array Analysis Plate formats 6, 12, 24, 48 and 96 well plates Strip plate in 96 well format (upgradable to all Petri dish formats) Advanced Components Precision stage (0.24 mm stepping) Digital area scan camera with image resolution of up to 10 Megapixels Computer Interface: USB 3.0 Integrated Barcode Reader Optical Interface: Motorized zoom and focus Lighting Top: 48 LED Ring (rated for 100,000 operating hours) Lighting Bottom: High illumination, uniform luminescent flat light panel Dimension Imaging Unit (H x W x D); (Weight): 58.4 cm x 56 cm x 56 cm; (23” x 22” x 22”); 45.36 kg (100 lb) Data Processing Unit (H x W x D); (Weight): 29cm x 9cm, 29cm; (11.4” x 3.7” x 11.5”); 4.99kg (11lb) Power requirements Voltage: 120/230 V AC, 60/50 Hz
